ORDINARY

 Currently researching opentherm protocol for getting data from boiler and test boiler.

https://youtu.be/kozCWUNFdS0

  Youtube video:  https://youtu.be/XdUzg6xuVUY Code:  heimdilon/Final-Year-Project: Bitirme projesi (github.com)

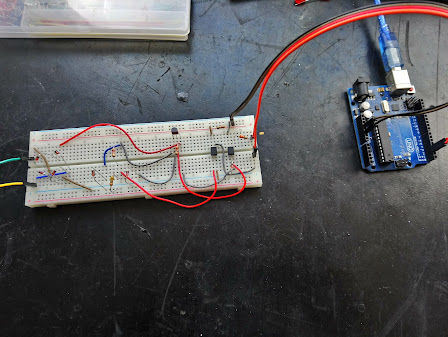

http://drazzy.com/package_drazzy.com_index.json Copy link above to; File>Preferences>Additional Board Manager URL's  copy here and click ok. Then open Tools>Board>Board Manager Then connect attiny2313 with arduino like shown below. ATtiny pin 1   arduino pin 10 reset ATtiny pin 17 arduino pin 11 MOSI ATtiny pin 18 arduino pin 12 MISO ATtiny pin 19 arduino pin 13 SCK ATtiny pin 10 arduino GND ATtiny pin 20 arduino VCC Open File>Samples>ArduinoISP From Tools choose Arduino Uno, connected port and programmer to AVRISP MKII Upload Open File>New Choose "ATtiny 2313/4313" from Tools>Board  Choose "ATtiny2313" from Chip Choose "8mhz(internal)" from Clock Choose programmer as "Arduino as ISP"  And we can upload our sample code void setup(){ pinMode(7, OUTPUT); } void loop(){ digitalWrite(7, HIGH); delay(10); digitalWrite(7, LOW); delay(10); } Source: http://arduinolearning.com/code/program...

Not:7-segment display common anode. Sources: https://docplayer.biz.tr/47307802-Sekil-1-74ls47-entegresi-baglanti-semasi.html                    https://pdf1.alldatasheet.com/datasheet-pdf/view/5724/MOTOROLA/SN74LS47N.html
